Small and medium economic SMD production line for PCB assembly Full-Automatic SMT Pick and Place Machine Charmhigh CHM-551, CPK≥1.0
High Precision 4 heads Charmhigh CHM551 PCB Pick & Place Machine 0201, QFN, BGA
Automated SMT pick and place machine, very good for small batch production with high stability
Introduction:
Charmhigh CHM-551 is a four-head high-speed high-precision general-purpose automatic SMT pick and place machine with high-end configuration mechanism and excellent performance, and its price is affordable. It is used for R&D proofing and SMT small and medium-sized production, and can quickly recover investment cost. Whether you're producing small batches or high-volume runs, it is your best choice. If you need a higher level pick and place machine, Charmhigh CHM-551 is a best machine.
CHM-551 catalog download: CHM-551 - Catalog.pdf
CHM-551 working video from customer:
https://www.youtube.com/watch?v=4tJCPSmYMIE&t=6s
CHM-551 mounting 0201:
https://www.youtube.com/watch?v=Vj1I1Kiavtg
Highlights:
1. Support CPK test, CPK≥1.0, 0201 perfect
Strong vision camera system, updated cameras with higher accurate, IC placecd more accurate, and min component 0201.
2. Automatic nozzle change (13 sets nozzle library)
Auto nozzle exchange, you don't need to change nozzle manually, very convenient!
3. Thermal Compensation
4. Automatic PCB conveying
With PCB auto conveyor, built a small SMT production line, free your hands!
5. Optimal speed:11500CPH ; IPC9850:8850CPH
With this speed, you can do medium volume work, with the excellent stability, working 15 hours per day
6. Smart software, AI support.
Fast programming, easy to operate, quick start only 1 hour.
| CHM-551 Specifications |
| Dimensions | 1050mm(L) x1050mm(W) x 885mm(H)/ with base: 1360mm |
| Weight | 200kg / with base: 310kg |
| Power Supply | AC220V (50Hz,single phase) 1.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 11500CPH (optimal); IPC9850: 8850cph |
| Mounting Accuracy | (XY)±0.06mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard);
600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows)
equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm);
IC camerax1 (component size applicable: 25mm×25mm);
Mark camerax2 |
We have two kinds for CHM-551, one is desktop, another is vertical, you can choose one of them.
Note: base must be installed in our factory before ship out!

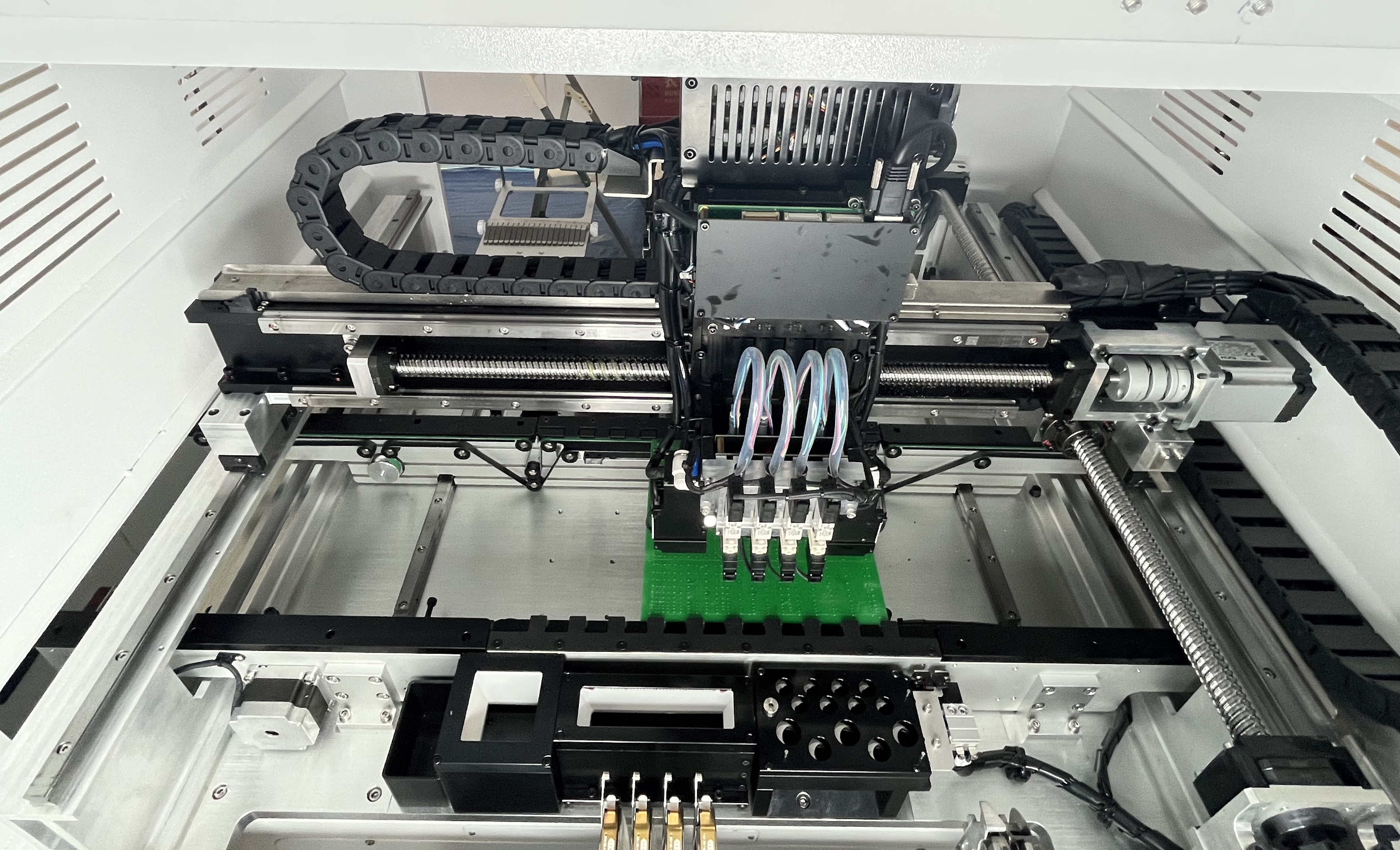

Solid machine with nice appearance:
Working with universal standard Yamaha Feeders(purcahse separately):
Feeding system: using Yamaha electric/pneumatic feeder, which is economical and stable.
Vibration feeder(stick feeder): support the feeding of tubular component.
Option:
1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic CL feeder
3. Vibration feeder
CHM-551 Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1
|
CHM-551 CPK≥1.0, so what is CPK detection?
CPK refers to the process capability index, it is a measure of how consistent and accurate a pick-and-place machine is in its production, If the CPK is high, it means the machine is really good at placing components exactly where they need to be. But if the CPK is low, it might mean the machine is not so good at it, and there could be more mistakes in the assembly process. It tells us how stable the machine's quality is during manufacturing. Here is the relationship:
CPK < 1: Poor
1 ≤ CPK < 1.33: normal
CPK ≥ 1.33: excellent
Summarize: CPK is a measure of how consistent and accurate a pick-and-place machine is in its production. Essentially, it tells us how stable the machine's quality is during manufacturing.
Charmhigh CHM-551 high feedback from customer:
Charmhigh SMT, factory supply, professional manufacturer, prompt delivery.
Charmhigh, top Chiense brand.

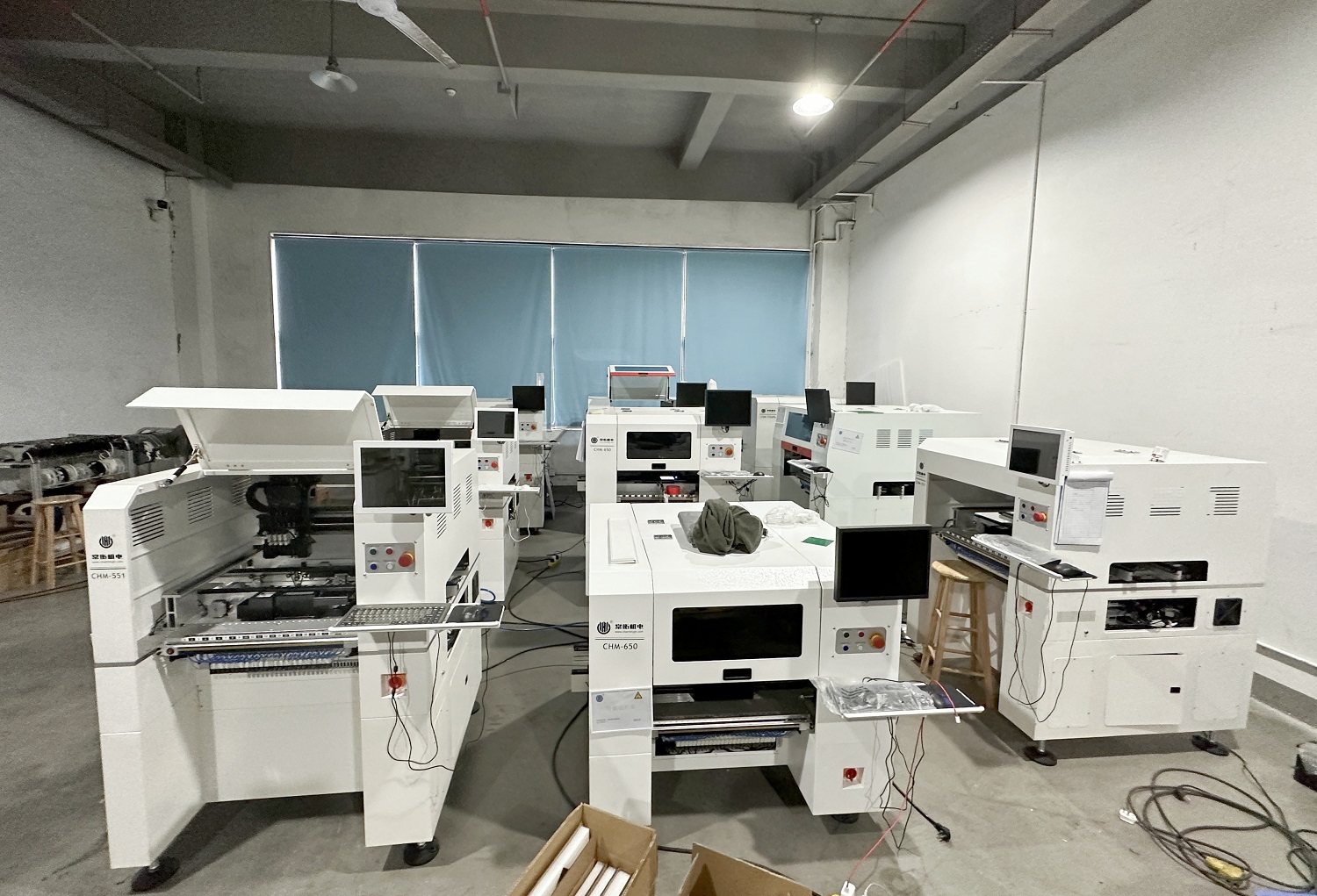

Charmhigh new industry park factory, researching & manufacuring park:
Please note:
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for feeders, head vaccum, PCB support, Auto-nozzle change library...).
Please purchase this machine with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi's Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.
